Problem summary

The user needs to navigate among sections of a website, but space to show such navigation is limited.

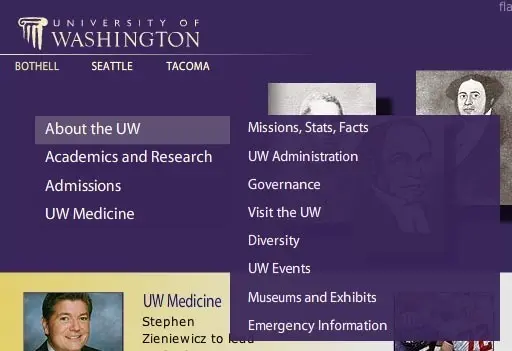

Example

Usage

  • Use when there are between 2 – 9 sections of content that need a hierarchical navigation structure.
  • Use when your functionality resembles one of a desktop application. Imitate the metaphor.
  • Do not use when there is a need to single out the location of the current section of the site. Then use the Navigation Tabs.

More examples

Solution

A list of main sections are displayed as links in a single vertical strip. When a user hovers their cursor over a list item or clicks a list item, a sub list is displayed (usually adjacent and below). The user can then follow the now horizontally extended list item down, and select the subsection they are interested in.

Traditionally, when the user’s cursor leaves a drop down menu, the menus are no longer visible. However, this is an unforgiving interaction method.

As humans, we do not always act perfectly as the system would like us to. To cope with human errors and to guide us to act as you would like us to, you can implement the following:

  • On mouseout events (when the user takes his mouse away from the drop-down’ed box), add a delay before hiding the drop-down’ed box (typically 200-300 ms.)
  • Make the area of each menu item wider than just the text of the menu item so that the user has more space to put his mouse cursor over.
  • Change the cursor image as the user hovers over a list item.

Other issues you want to take notice of

There are many different kinds of drop-down menus out there. Some are purely javascript. These kinds of drop-down menus do not work well with search engines. To let the search engines index your page, you would want to have the menu formatted in HTML from the beginning of the page load, rather than building it in javascipt client-side after the page has loaded.

Rationale

Drop-down menus save space by organising and concealing information. Drop-down menus are not regarded as a technique that increases usability, as they can often be difficult to use.

Flyout menus allow for only showing top levels of the page’s hierarchy permanently, while still giving the option to show deeper levels on mouse over

This article has been commented 2 times.

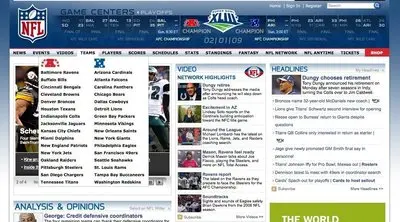

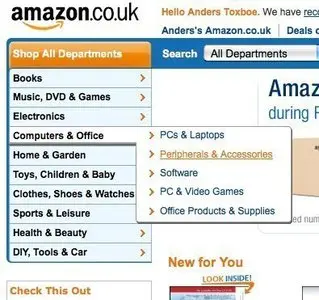

More examples of the Horizontal Dropdown Menu pattern See all 3 example screenshots
